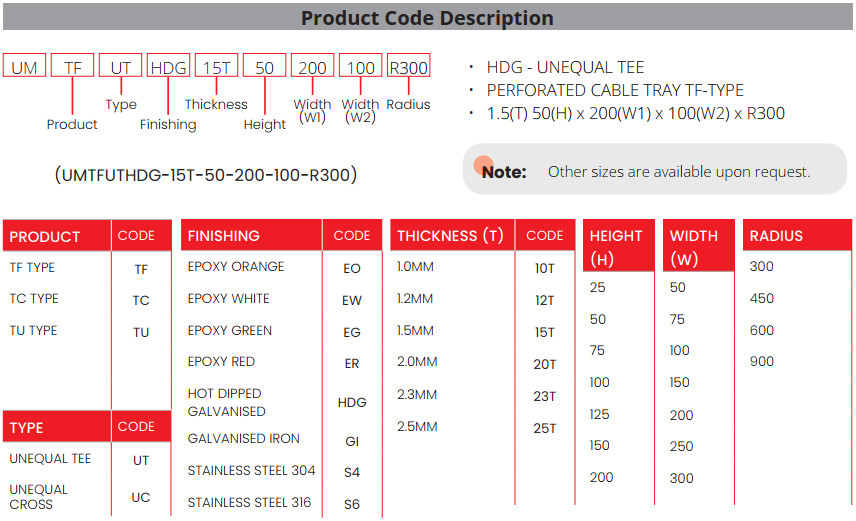

Cable Tray - Horizontal Tee & Cross (Unequal)

UMI unequal horizontal tees and crosses are designed to provide flexibility in cable routing, especially in situations where cable paths need to diverge or converge with varying cable loads. Proper cable tray design and installation help ensure efficient cable management, organization, and maintenance in a building or industrial facility.

TYPES:-

1. Horizontal Tee (Unequal):
   • A horizontal tee is a type of cable tray fitting that allows cables to branch off horizontally in different directions.
   • When it is referred to as "unequal," it means that the branches are not of the same size or length. One branch may be larger or smaller than the other, depending on the design and installation requirements.
   • The unequal horizontal tee is useful when you need to distribute cables to different areas with varying cable quantities or sizes.
2. Horizontal Cross (Unequal):
   • A horizontal cross is another type of cable tray fitting that provides a crossing point for cables, allowing them to move horizontally in multiple directions.
   • Similar to the horizontal tee, the "unequal" designation indicates that the arms of the cross are not of equal size. One or more arms may be larger or smaller to accommodate the specific cable routing needs.
   • The unequal horizontal cross is beneficial when you have multiple cable runs intersecting at a single point, and the cable quantities or sizes in each direction are
